Frictiometer FR 700

• The Measuring Principle

  The probe contains a motor, a steering unit and the friction head with a plain, smooth Teflon disk. The weight of the probe determines the (constant) pressure on the skin. The motor applies a constant rotational speed (adjustable in the software) onto the skin by the friction head. The torque is measured and the result is displayed as (arbitrary) Frictiometer units. The smoother the material on which the probe is placed, the less force is needed in the motor.



• Advantages of the Frictiometer

  • Constant pressure on the skin by the weight of the rotating disk.
  • Different velocities of rotation can be set.
  • The probe is especially sensitive and shows a broad scale of measuring results.
  • A notch on the measurement head allows the fixation of different materials on the probe head.
  • Measurement on different surfaces is possible (e.g textiles, plastic, metal and many more).
  • It allows quick measurements as well as continuous measurements over a longer time period.
  • The probe head can easily be cleaned after each measurement.



  * The Frictiometer FR 700 is connectable to the MPA systems (but not the MPA 2) and the MDD device.

• Fields of Application

  There are numerous applications possible:



  • The probe can measure friction of the skin as well as of other surfaces (e.g. textiles, papers, etc.). The measurement is suitable for comparison measurements, rather than absolute measurements.
  • Skin characterization: The friction of the skin is depending on many parameters (dryness, smoothness, roughness, scaliness and other topographic properties).
  • Efficacy testing of skin care products: e.g. increasing smoothness, hydration, etc. The measurement is also sensitive to different kind of formulations, e.g. o/w vs. w/o (the w/o emulsions decrease the frictionary resistance more than the o/w emulsions and the effect is longer lasting)

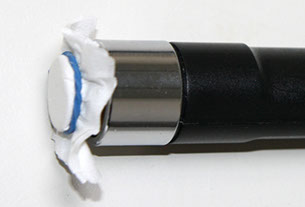

  • Effects of textiles and papers used on the skin (e.g. diapers, tissue, toilet paper, etc.): Different materials of course have different Frictiometer values. For testing, the material is pulled over the friction head and fixed in the notch. The frictionary resistance of the material may lead to irritation on the skin (which then can be assessed i.e. with the Mexameter®). It is possible to study e.g. the effects of untreated paper tissues on the skin in comparison with paper tissues containing additives.





  The Frictiometer FR 700 is connectable to the MPA systems.

• Technical Data

  Probe only:

  Dimensions: 13 cm

  Cable length: approx. 1.3 m

  Measuring surface: Ø 16 mm (plain Teflon head)

  Weight: approx. 130 g incl. cable

  Pressure: 0.7 N



  Measurement principle: measurement of torque

  Units: arbitrary Frictiometer® units

  Measurement uncertainty: ± 10%



  Technical changes may be made without prior notice.
