Skin-Colorimeter Flex CL 440

• The Measuring Principle

  The probe sends out white, high CRI LED light, arranged circularly to uniformly illuminate the skin. The emitted light is scattered in all directions, some parts travel through the layers and some is scattered out of the skin, the light reflected from the skin is measured in the probe and expressed accordingly.







  Light points overlapping the closer the probe comes to the skin surface and different sizes of measurement tips help to place the Skin-Colorimeter Flex CL 440 perfectly on even smallest skin sites.











  L*a*b:

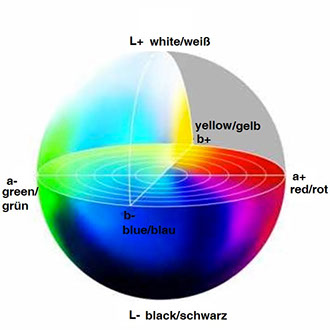

  The CIELAB color space (also known as L*a*b*) is a color space defined by the International Commission on Illumination (CIE). Each letter represents an axis. Correlation between the color space and the human skin:



  L* gives information about the black-white-axis, the brightness/ lightness, the higher L*, the brighter the skin.

  The a*-value located on green-red axis is proportional to the erythema (microcirculation/redness of the skin). A higher a* value corresponds to higher erythema.

  The b*-value located on the blue-yellow axis in literature often describes the pigmentation.

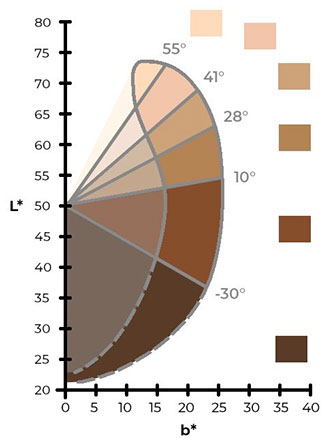

  In addition the Individual Typology Angle ITA° is automatically calculated from L* (luminance) and b* (yellow chromatic). ITA° is an established tool to objectify skin colour for predicting the biological consequences of UV exposure on the skin (the lighter the skin, the higher the consequences).



  ITA° > 55°                  “very-light”

  55° > ITA° > 41°         “light”

  41° > ITA° > 28°         “intermediate”

  28° > ITA° > 10°         “tan”

  10° > ITA° > - 30°       “brown”

  - 30° > ITA°                “dark”













• Advantages of the Skin-Colorimeter Flex

  • The absorption and reflection behaviour of skin differs very much from other materials, as the skin consists of different, translucent layers, making colour measurements of the skin very complex. The Skin-Colorimeter probe is specially designed to detect smallest colour changes very close to the skin surface, thus ideal for comparison measurements.
  • Most modern electronics for maximum Skin-Colorimeter Flex - easy to position, easy to clean, LEDs with high CRI (colour rendering index).

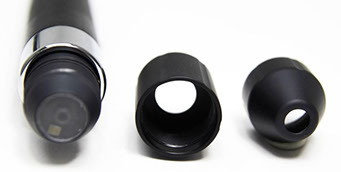

  • Two interchangeable measuring tips that optimally illuminate larger and smaller skin areas: cylindrical 13 mm Ø illumination area for skin & hair and conical 7 mm Ø illumination area for particularly small skin areas, pigmented spots and lesions, nails, lips or other materials.
  • Unique placement aid: Light spots overlapping each other the closer the probe gets to the skin surface indicate where exactly the measurement will take place.
  • Hygienic: sealed electronics and removable tips can be cleansed easily.
  • Very quick and easy measurement (only 1 second)/

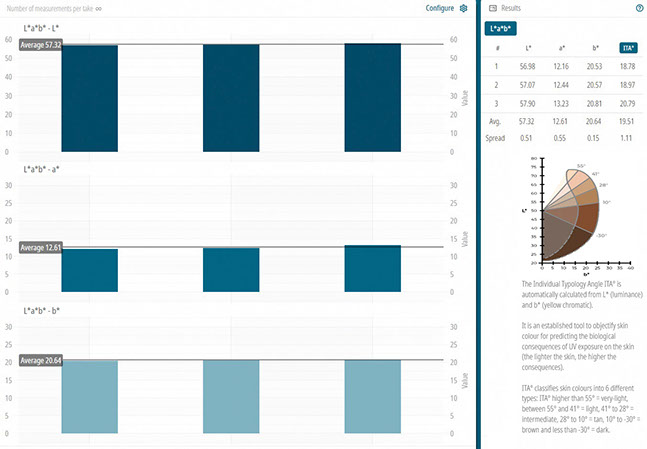

  • Automatic calculation of ITA (Individual Typology Angle) for each measurement. ITA uses L* (luminescence) and b* (yellow L*a*b* display in software chromatic) to classify 6 skin colours from very light to dark.
  • Light, constant pressure of the probe on the skin surface with minimized effect on the surface (pressure on the skin leads to changes in microcirculation and thus influences the colour).
  • The accuracy of the Skin-Colorimeter probe can be checked easily anytime.
  • Hair clip available to place the probe conveniently directly on the hair surface.











• Fields of Application

  The probe has been developed especially for the needs of measuring changes in the skin colour.



  Cosmetic and pharmaceutical efficacy tests, like self-tanners, make-ups, whitening products, patch-testing, decorative cosmetics, hair and carotene food supplements.

  With the conical measurement tip especially small surfaces e.g. pigmented spots and lesions, nails, lips or small animals can be captured more precisely.

  Colour measurements on other materials (e.g. plants, fruits, metal, tissue, etc.)



  Typical claims (examples) substantiated with the Skin-Colorimeter: sun protecting, whitening/brightening, skin tone correcting, soothing, micro circulation increasing, vitalising, anti-allergic, anti-irritation, safe, anti-pollution, for sensitive skin, self-tanning, colouring, colour protection, improves healing, concealing, anti-aging, against dark-spots/age-spots/couperosis/dark-circles, non-photosensitive, and many more.







• Technical Data

  Measurement principle: reflection

  Light: 3 high CRI white LEDs arranged circularly, range of emitted wavelengths: 440-670 nm

  Units: XYZ, RGB, L*a*b* index values (due to the unique structure of the skin and the special light source the values do not fully correspond to ISO standards and are therefore expressed as index values), calibration to skin colours with a special correction matrix



  Measurement uncertainty: ΔE < 2 units



  Probe only:

  Dimensions: 16 x 2.5 cm

  Core measuring area: Ø 6 mm

  Illuminated area: approx. 13 mm Ø cylindrical) and approx. 7 mm (conical)

  Cable length: approx. 1.3 m

  Weight: 95 g



  For the dimensions, etc. of the wireless probes, please see the technical data of the basic devices.



  Technical changes may be made without prior notice.
