Skin Diagnostic SD 202

sales@dproscientific.com

+6 (03) 7960 4710

back

For every measurement the suitable device;

The basic device measures skin hydration and oil (sebum) on skin and hair as well as melanin (pigmentation)/erythema (redness).

Configurations with other probes e.g. pH, skin temperature for the assessment of micro circulation or TEWL-index are optionally possible.

The display shows immediately the measurement.

DOWNLOAD

What can the device do?
- The basic device measures skin hydration and oil (sebum) on skin and hair
- Optional probes to measure melanin (pigmentation)/erythema (redness), pH or TEWL-index can be connected as well
- result on the display
Advantages of the Skin Diagnostic SD 202
- Battery operated unit can easily be moved around and transported.
- Flexible solution for all kind of measurements.
- They can be used easily on the counter, in a beauty or hairdressers salon, at the dermatologist or in the pharmacy to attract customers and to increase the sales of cosmetic products.

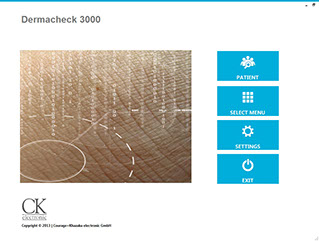

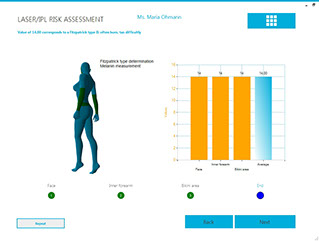

- The SD 202 can be also operated with the brand new software Dermacheck 3000 especially suitable for aesthetic practice/institute to do single measurements and laser/IPL risk support (if a melanin probe is connected). The software is modular and license based.
Technical Data
Device:
Dimensions: 15 x 14 x 4.5 cm
Weight: approx. 0.5 kg
Power supply: 9V battery
Port: USB 2.0, type B connector

Moisture probe:
Measurement: capacitance
Time: 1 second, Scale 0-99
Frequency: 0.9-1.2 MHz
Dimension: 11 cm
Weight: 41 g
Cable length: 1.3 m

Sebum:
Measurement: photometrical
Time: 10 seconds, Scale 0-99
Dimensions: 8.5 x 11.3 x 2.3 cm
Weight: 65 g
Number of measurement: approx. 400 (if the trigger is only pulled down slowly for the next free measuring section). When tape is consumed, the whole cartridge has to be renewed.

Melanin/Pigmentation & Erythema: (optional)
Measurement: absorption/reflection
Nominal wavelengths: 3 colour measuring system green: λ peak = 568 nm, red: λ peak = 660 nm, infrared: λ peak = 880 nm
Time: 1 second, Scale 0-99
Dimensions: 13 cm x Ø 2.4 cm
Weight: 85 g
Cable length: 1.3 m

pH probe: (optional)
Measuring range: pH 0 to pH 11
Resolution: 0.1 pH
Length: 26.5 cm
Weight: 116 g
Cable length: 1.3 m

Temperature probe: (optional)
Measuring principle: infrared
Resolution: 0.1 °C
Dimensions: 13.5 x Ø 2.4 cm
Weight: approx. 68 g
Cable length: 1.3 m

TEWL-Index: "Open-chamber-measuring-principle" (optional)
Measuring time: 15 seconds
Units: index values: 0-20
Length: approx. 12 cm
Weight: approx. 40 g
Cable length: 1.3 m

Technical changes may be made without prior notice.
