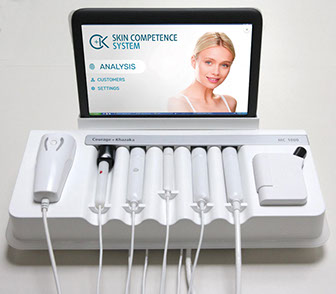

Multi Skin Test Center MC 1000

• What can the device do?

  The device allows you to create your own measurement system by selecting probes of your choice.



  The basic system consists of:

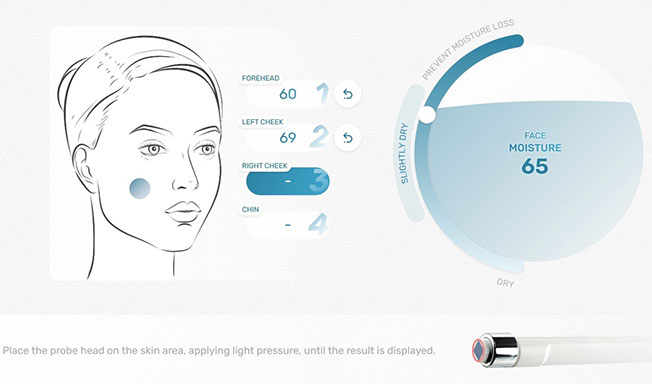

  • measurement of skin hydration
  • oil (sebum) content assessment on skin and hair
  • the elastic properties of the skin (biological skin age) measured by suction (ability of the skin to resist /firmness versus its ability to return to the original position), displayed in %.
  • measurement of skin pigmentation and redness (erythema).

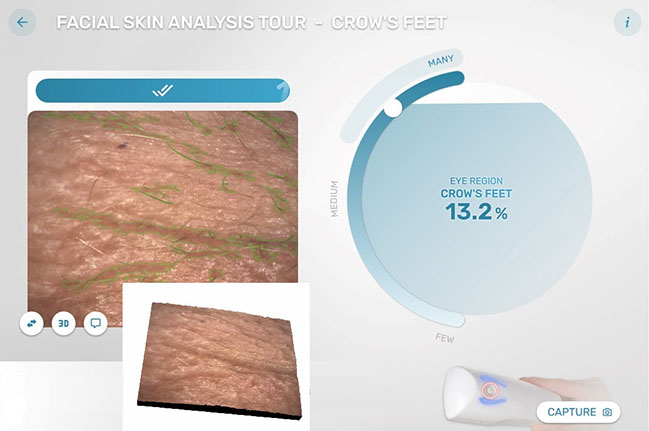

  • Visioscope® PC 35 skin camera with parallel and cross polarized light.

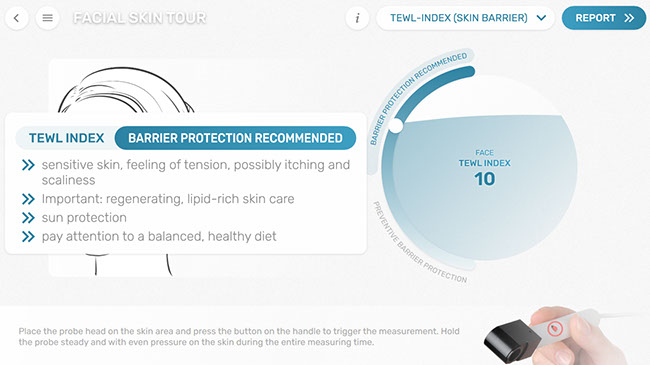

  • Other probes can be connected on request: skin temperature, TEWL index (the quality of the skin barrier), pH-measurement, hair colour measurement (more probes in preparation)









  • Special foils Sebufix® F 16 and Cornoefix® F 20 in convenient dispensers usable with the camera to perform quantitative analysis of sebum production and desquamation (chart interprets the images visible on the monitor). The Sebufix® mounted on the Visioscope® Camera shows the sebum production in real time on the monitor.

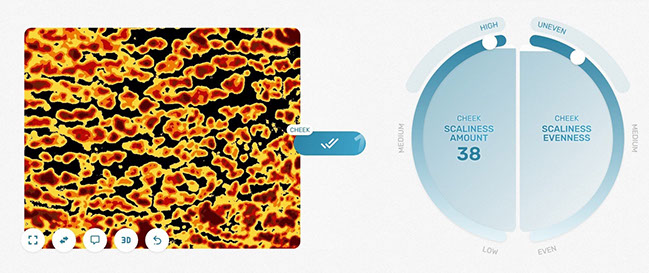

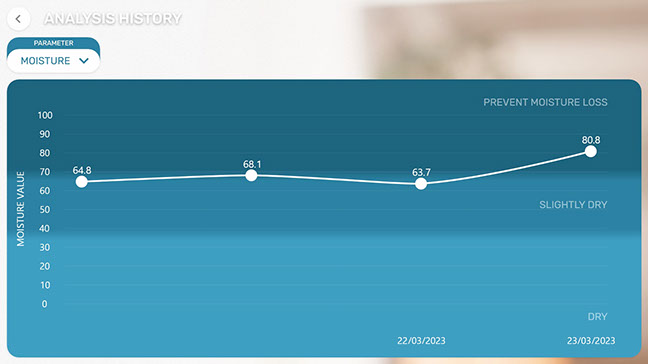

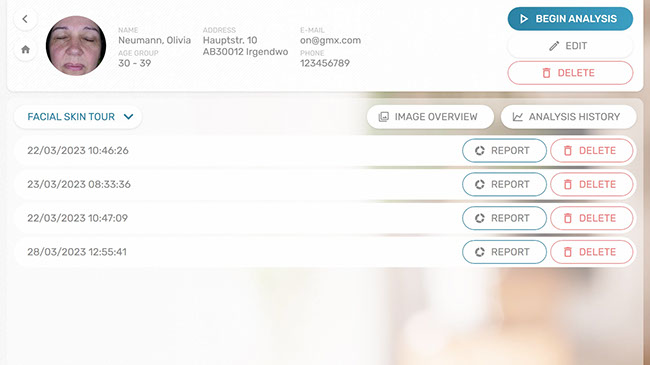

  • The device is operated with the sophisticated and attractive software Complete Skin investigation (CSI) to do image analysis, skin type determination, sun care product recommendation and hair care consulting











  • It can be also operated with the brand new software Dermacheck 3000  especially suitable for the aesthetic practice and institutes to do single measurements with probes and camera, dermatoscopy and laser/IPL risk support. The software is modular and license based.







• Advantages of the Multi Skin Test Center MC 1000

  • new attractive design
  • ideal tool for all who want to do a comprehensive skin analysis using a computer Windows 7, 8 and 10.
  • quick and easy measurements combined with impressive close up images.
  • measurement results directly interpreted on the device so easy to understand for your customer.

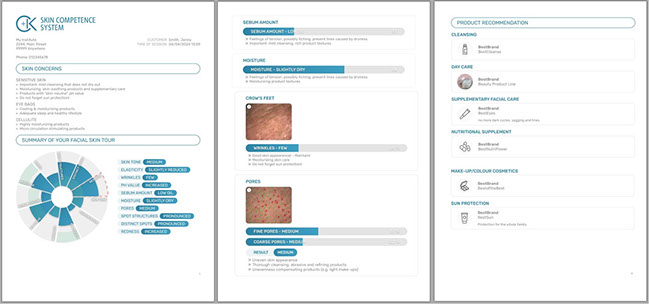

  • product recommendation for skin care, hair care, suncare, special products and treatments possible (we recommend to



           make "skin passports" in which you can fill in the results and the recommended products.

  • Ask for special transportation suitcases (trolley style)

• Technical Data

  Device

  Dimensions: 46 x 22 x 9 cm, Weight: approx. 1.8 kg (without probes), External power supply: 100-240 VAC/12VDC,



  Moisture

  Measurement: capacitance, Time: 1 s, Scale 0-99, Frequency: 0.9-1.2 MHz, Dimension: 11 cm, Weight: 41 g, Cable length: 1.3 m



  Sebum

  Measurement: photometrical, Time: 10 s, Scale 0-99, Dimensions: 8.5 x 11.3 x 2.3 cm, Weight: 65 g, Number of measurement: approx. 400 (if the trigger is only pulled down slowly for the next free measuring section). when tape is consumed, the whole cartridge has to be renewed



  Elasticity

  Measurement: suction with 400 mbar pressure, Time: 6 s (3 s suction and 3 s relaxation), Scale 0-99, Probe opening: 2 mm Ø, Dimensions: 13 cm x Ø 2.4 cm, Weight: 95 g, Cable length: 1.3 m



  Melanin/Pigmentation

  Measurement: absorption/reflection, wave lengths: 568, 660 and 880 nm, time: 1 s, Scale 0-99, Dimensions: 13 cm x Ø 2.4 cm, Weight: 85 g, Cable length: 1.3 m



  Visioscope® AP 35 analogue skin camera

  Power Supply: 5 V DC (via main device), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: approx. 1.5 m, Light source: White LED →multi function camera button switches the polarization mode (short press) and freezes the image (long press), Image size : 6 x 8 mm → approx. 10 mm diagonal, Video output mode: PAL



  Sebufix® F 16

  Milky foil to determine the sebum content qualitatively, Dimensions: 1.7 x 1.7 cm, Thickness: 0.2 mm



  Corneofix® F 20

  Transparent foil to assess desquamation, Dimensions: 2.00 x 1.95 cm, Thickness: 0.1 mm



  Foils are completely harmless for the skin



  Technical changes may be made without prior notice.
